DTRO Module Series

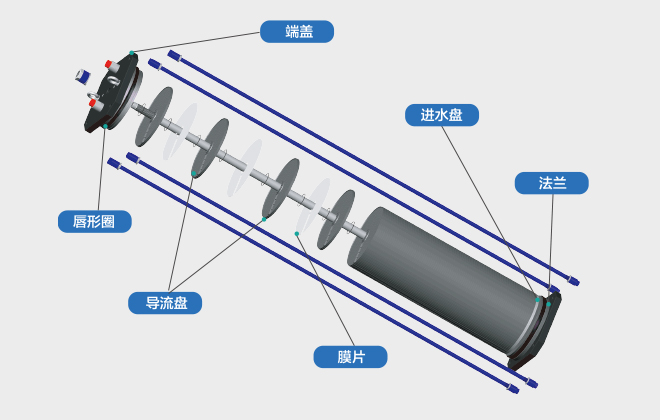

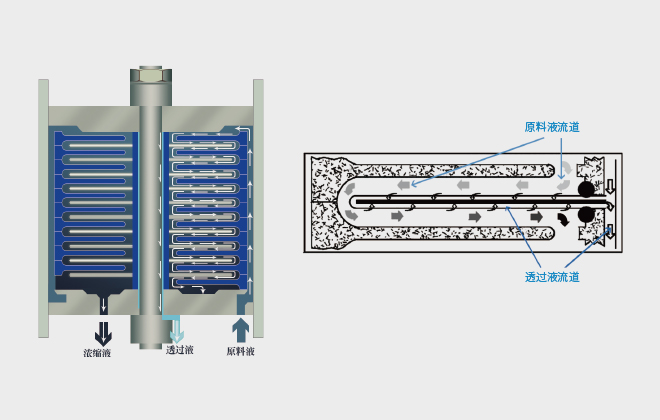

The DT membrane module adopts a special open flow channel design, which consists of membrane cushion, disc plate, tie rod and housing. Raw water flows from the bottom up through the gap between housing and disc plate, and then enters disc plate through upper flange. Under pressure, water molecules pass through membrane cushion and flow out along the gap between tie rod and disc plate to form permeate.
DTRO Module Series
The CD membrane module adopts a special open flow channel design, which consists of membrane cushion, disc plate, permeate anchor and housing. Raw water flows from the top down through the gap between housing and disc plate, and then enters disc plate through bottom water distribution plate it rises along the disc and membrane in a helicoidally pattern. Under pressure, water molecules pass through membrane cushion and flow out along the gap between permeate anchor and disc plate to form permeate.
